Mounted the 3 inch remote MPPT meter today and while not completely finished with all my wiring I was able to close the lid and put cushions back in their place.
Voltmeter on left is connected directly to battery bank. The backlit meter shows details about Solar, Battery and Load. Have not decided if I’m going to use the Load terminals.
The digital volt display is connected directly to the Battery. The backlit meter is connected to the MPPT solar controller and provides information about Solar, Battery and Load (not used).

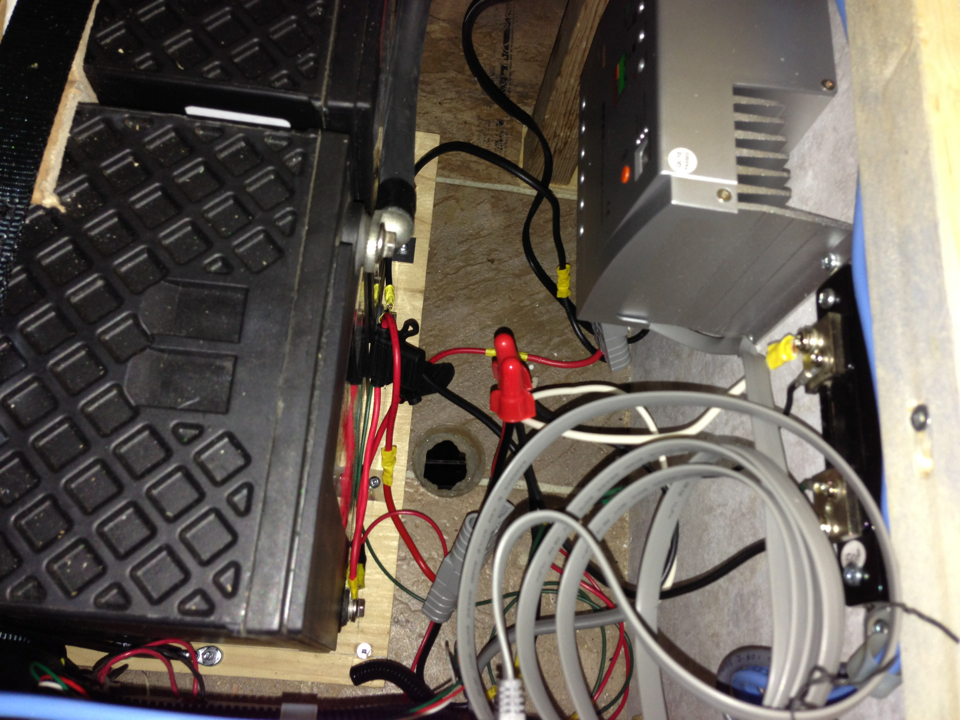

A pair of two 6 Volt 225 AH batteries installed on end to maximize space. On the right is the MPPT solar controller.

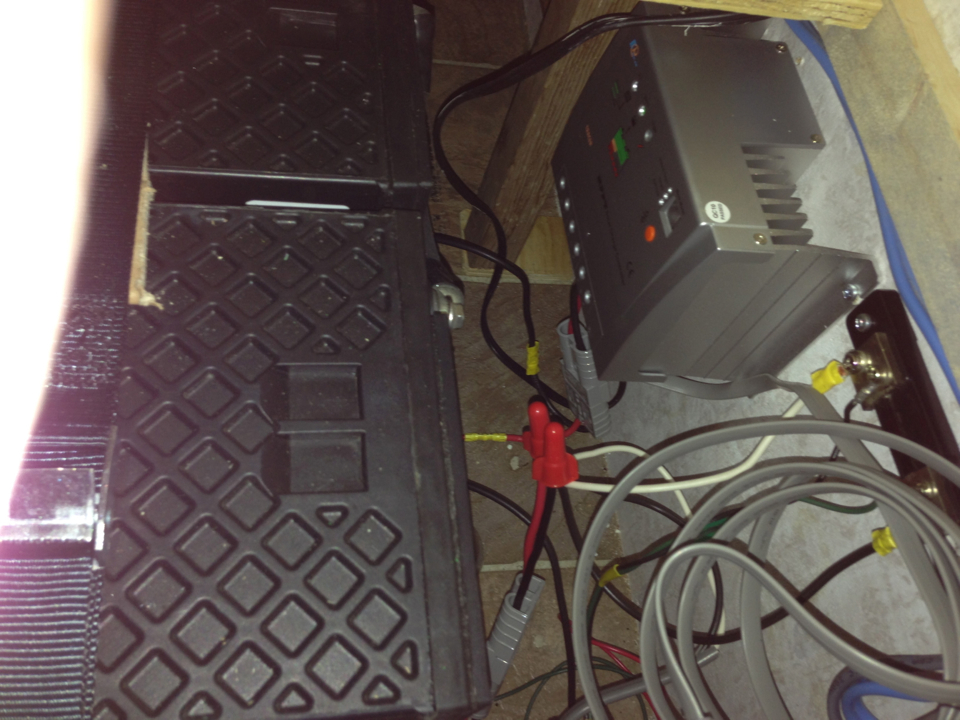

Just another view of Power Central.
Little bit of cleanup needed yet.
